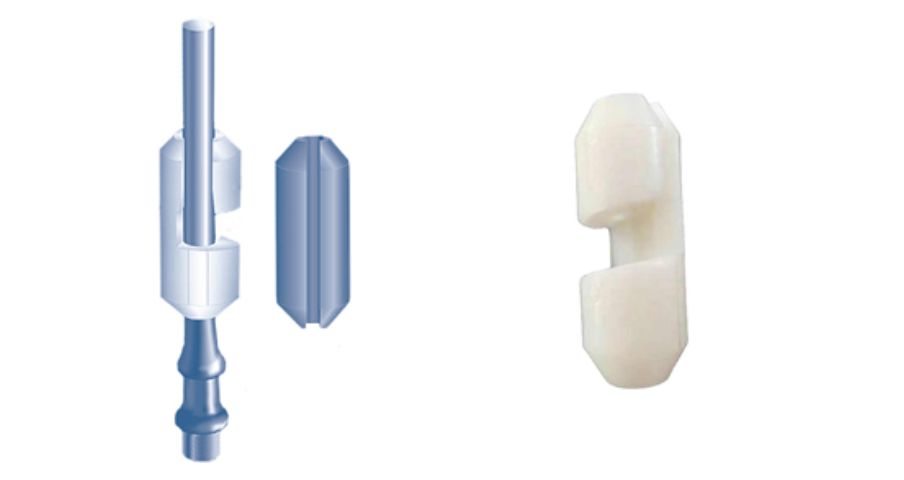

Brangus Oil Tools (Nylon) Sucker Rod Guides are designed for use in artificial lift (pumping) wells to eliminate the internal tubing wear caused by the sucker rods. The sucker rod guides minimize costly metal-to-metal contact between the sucker rods and tubing. The guides also function as bearings by centralizing the sucker rods in the tubing string.
Even when the tubing buckles during upstrokes, the guides help prevent contact between the rods and tubing. Friction is also reduced, which raises the overall pumping efficiency.
Sucker Rod Guides are available in both snap-on and twist-on versions.
| APPLICATION | MAXIMUM ROD LOAD | DIMENSIONS (INCH) |
| 5/8″ Rod / 2-7/8″ Tubing | 19,600 Lbs. | 2.25’’ |
| 3/4″ Rod / 2-7/8″ Tubing | 19,600 Lbs. | 2.25’’ |
| 7/8″ Rod / 2-7/8″ Tubing | 22,400 Lbs. | 2.25’’ |
| 3/4″ Rod / 3-1/2″ Tubing | 19,600 Lbs. | 2.75’’ |
| Material | Base Polymer | Temperature limitation | Hot Oiling | Sweet Crude | Sour Crude | Sand | Water Brine | Brine |
| NFF | Nylon | 275°F (135°C) | Average | Excellent | Excellent | Excellent | Excellent | Excellent |
